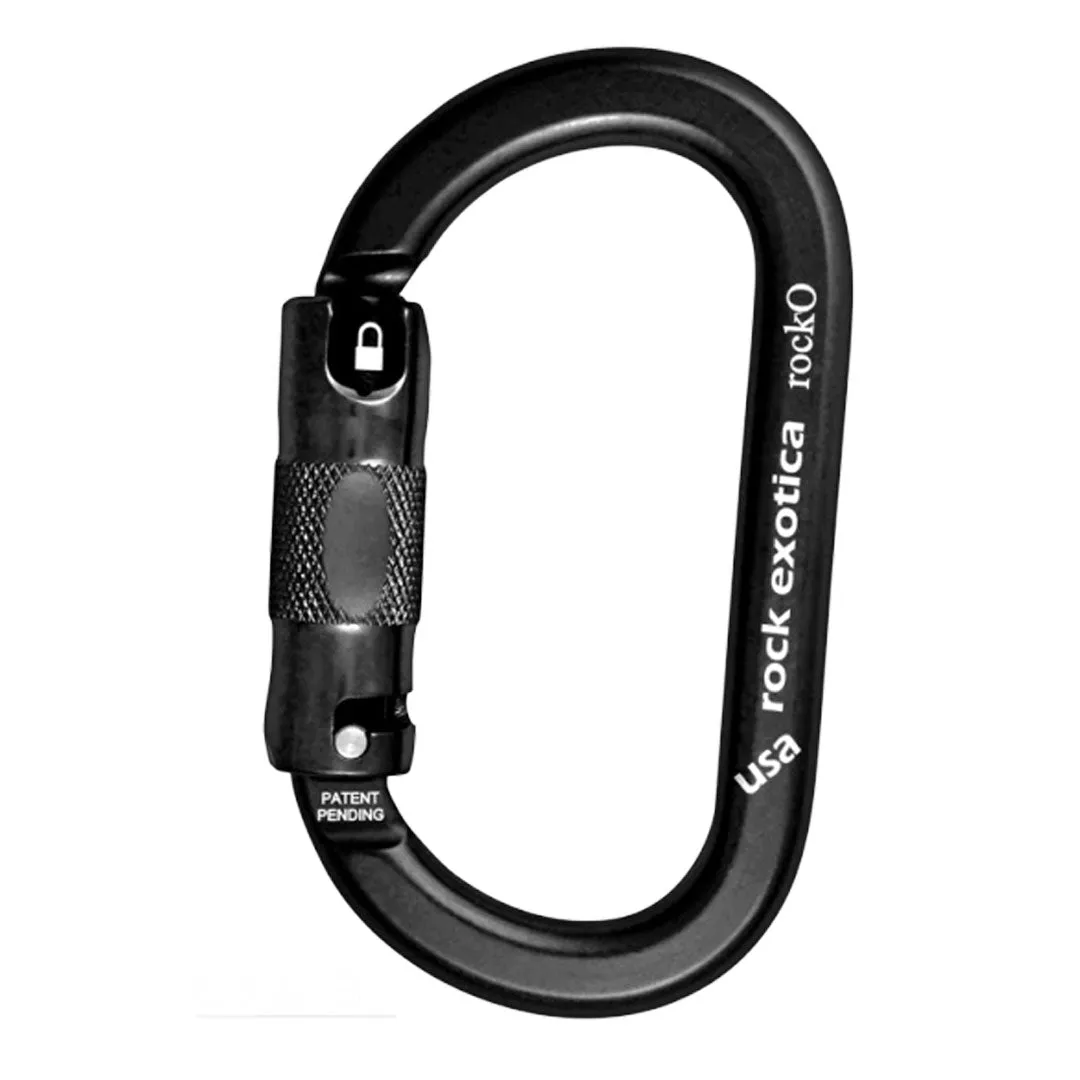

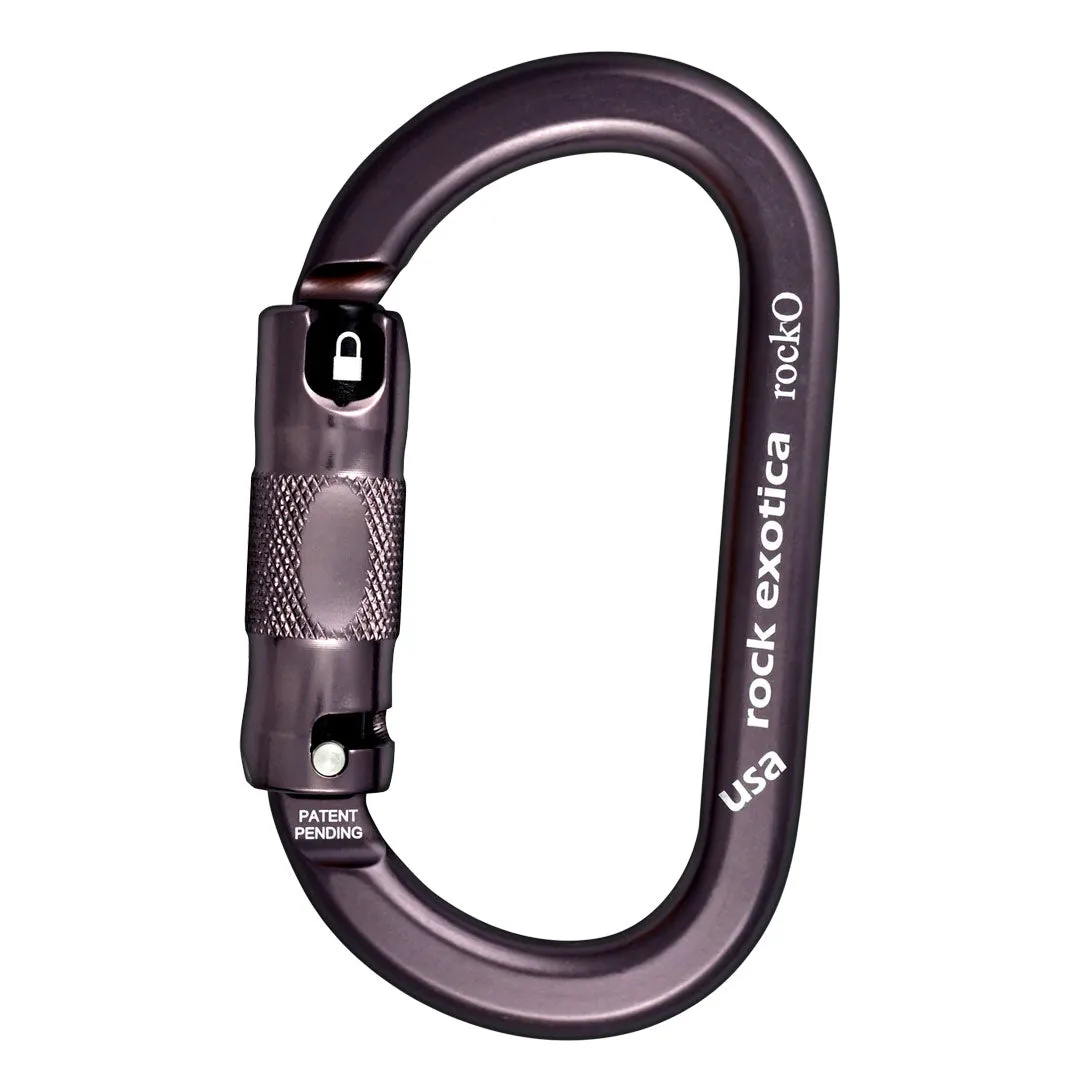

The rockO 3-stage Auto-Lock is a blend of the traditional oval and the rockD giving it more strength than the standard oval. This design is great for users that need extra room at the bottom of the carabiner while keeping their gear aligned.
Gate Mechanism
The 3-stage Autocking carabiner features a pull-down and twist action — a motion that’s more intuitive and natural for your hand than lifting up and away from your palm.
We identified several surfaces where ropes and lanyards can be held up by the edges of the gate and sleeve, which can lead to dangerous cross-loading. The auto-lock gate sleeve is designed with beveled edges to minimize this risk and provide a smoother interior for interaction with the materials connected to the carabiner.
- Ergonomic pull-down and twist action
- Beveled edges provide smooth operating surfaces
- Large and ergonomic angled gate opening
Frame Characteristics
The rockO is a blend of the traditional oval and the rockD giving it more strength than the standard oval. This design is great for users that need extra room at the bottom of the carabiner while keeping their gear aligned.
- "Enhanced" oval optimizes strength while maintaining utility of oval shape
- Designed to center gear and lines in middle of bend radius
- Flattened frame with slim profile
- Snag-resistant keylock nose design
- Large and ergonomic angled gate opening
- CNC machined frame ensures tight tolerances and smooth operation
Specifications
- Gate: Auto-Lock
- Ref #: C3A-B
- MBS-Major: 24 kN
- MBS-Minor: 11 kN
- MBS-Open: 6 kN
- Inward against sleeve: 6 kN

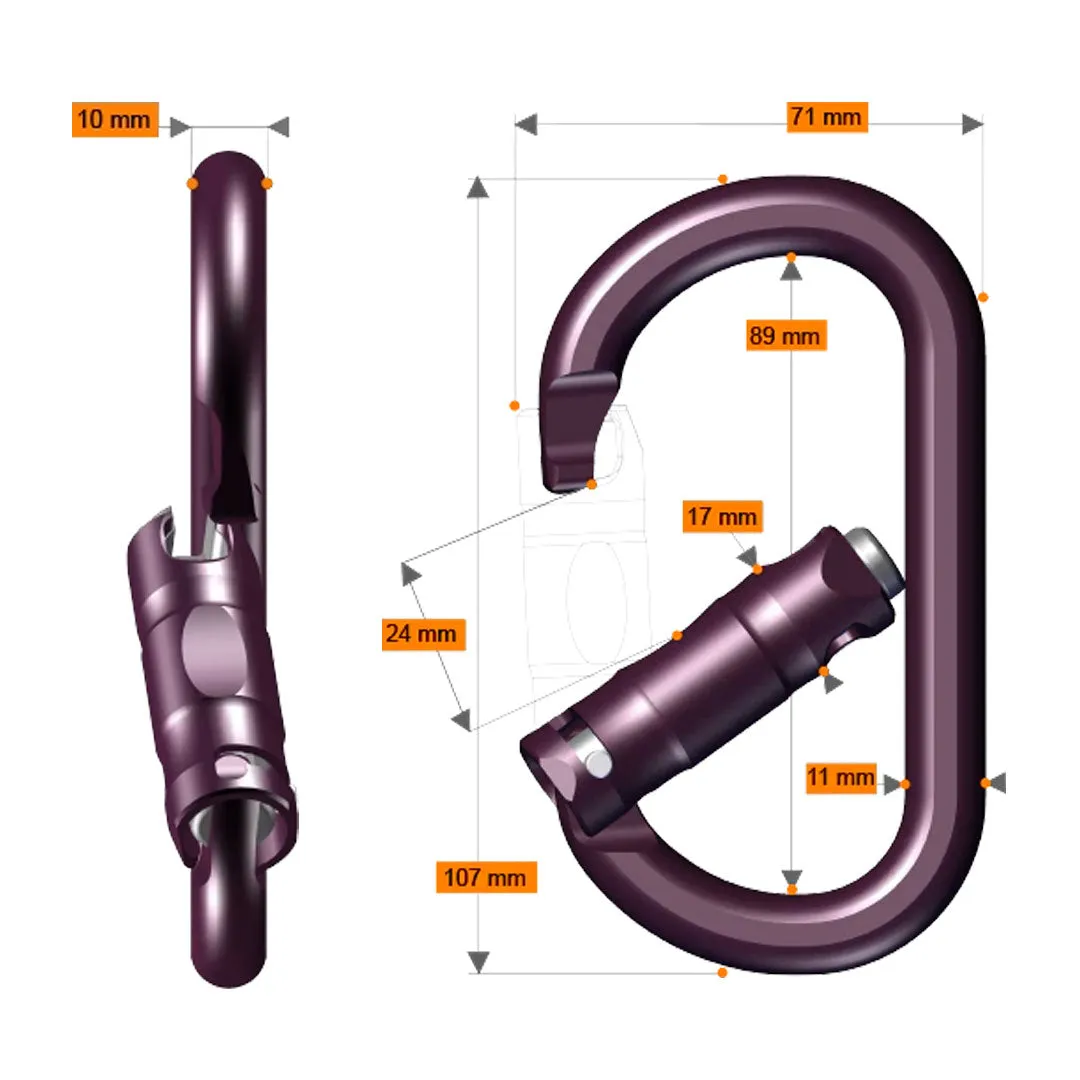

- Gate Opening: .93" (23.6mm)
- Weight: 2.85 oz (80 g)
- Height: 4.4" (111 mm)
- Width: 2.5" (64 mm)
- Certification: CE
